Wifi or LAN Identification – Alpha Systems

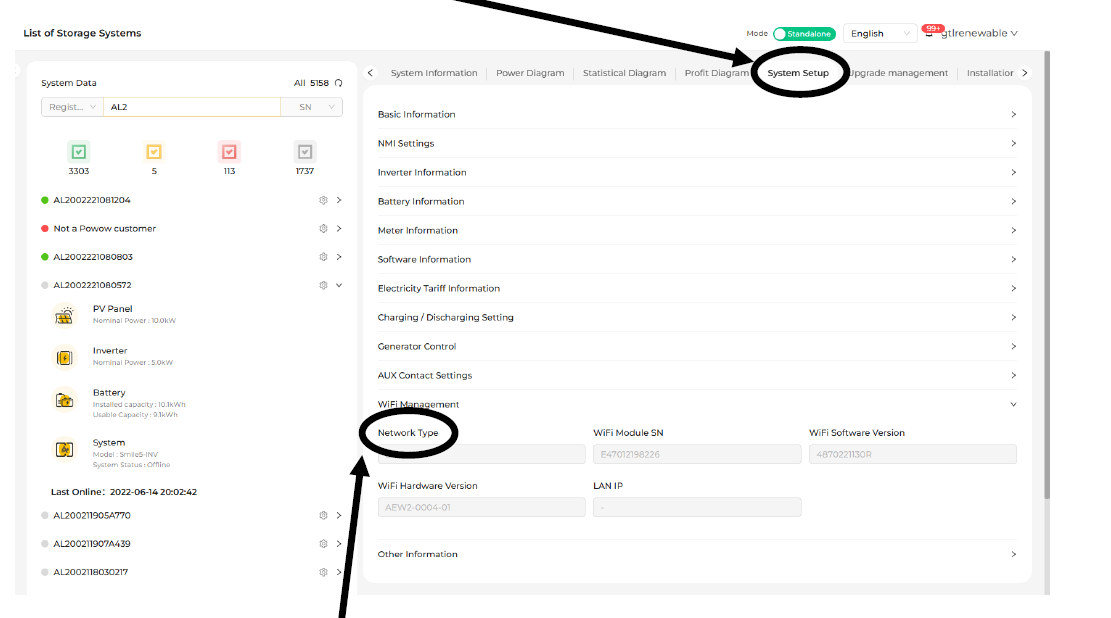

1. Search Inverter SN on Alpha portal
2. Go to System Setup tab

3. Scroll down to Network Type and click on it
4. If it has details of the Wifi Module SN and Wifi software and hardware versions, it has WiFi connection. If not, then it is a LAN connected system.

Example of Network Type details for Wifi Connected System:
